A Crossbow like no other
The Mini In-Line Vertical Crossbow is like now other crossbow. Its vertical orientation makes it very balanced and easy to hold for accurate, freehanded shooting experience. Easy and comfortable shooting for the tallest to the shortest shooters making it a “one size fits all”. Though there is an EZ Rope Cocking Device and Crank Options available for drawing, children and women are finding the adjustable poundage is great for customizing the draw weight for hand drawing and shooting different weights. This compact bow (29” long and 17 a-a) is light weight (6 lbs) and is a joy to shoot and pleasure to walk through the woods with. It does have impressive speeds, 325-330’s with a 23 inch, 380 grain Arrow. Disarming the bow is very simple without the need of shooting an arrow or using a special crank. Because the bow is shot “Vertically” the bow can be propped and shot while leaning against a tree, something not possible with other crossbows. There is no press needed for changing strings, cables or other maintenance, and the Vertical Crossbow shoots standard arrows.
After a thousand plus years, the perfect crossbow has finally been born.
The Mini In-Line Vertical Crossbow is like now other crossbow. Its vertical orientation makes it very balanced and easy to hold for accurate, freehanded shooting experience. Easy and comfortable shooting for the tallest to the shortest shooters making it a “one size fits all”. Though there is an EZ Rope Cocking Device and Crank Options available for drawing, children and women are finding the adjustable poundage is great for customizing the draw weight for hand drawing and shooting different weights. This compact bow (29” long and 17 a-a) is light weight (6 lbs) and is a joy to shoot and pleasure to walk through the woods with. It does have impressive speeds, 325-330’s with a 23 inch, 380 grain Arrow. Disarming the bow is very simple without the need of shooting an arrow or using a special crank. Because the bow is shot “Vertically” the bow can be propped and shot while leaning against a tree, something not possible with other crossbows. There is no press needed for changing strings, cables or other maintenance, and the Vertical Crossbow shoots standard arrows.
The Mini In-Line Vertical Crossbow has a new look while maintaining the same high performance.
The “Corrugated” shaped Tigger Tube Assemble makes it lighter and stronger giving it a sleek look as well as feels great in your hand when holding.

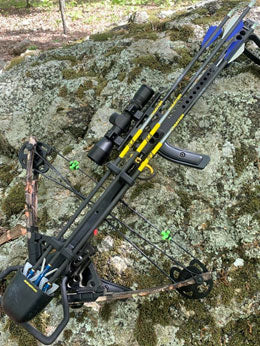

Camo limbs with it’s black Trigger Tube Assembly, cams and riser, gives it a really nice look!

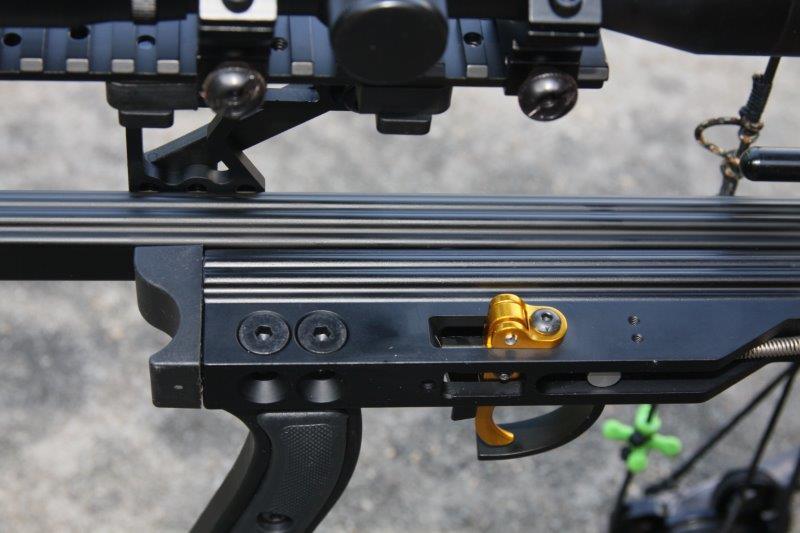

Front Trigger Housing with Grip Gold Trigger, Safety Tab and Thumb Position Grove Front Linkage Block, Trigger Guard, Trigger Pull Spring

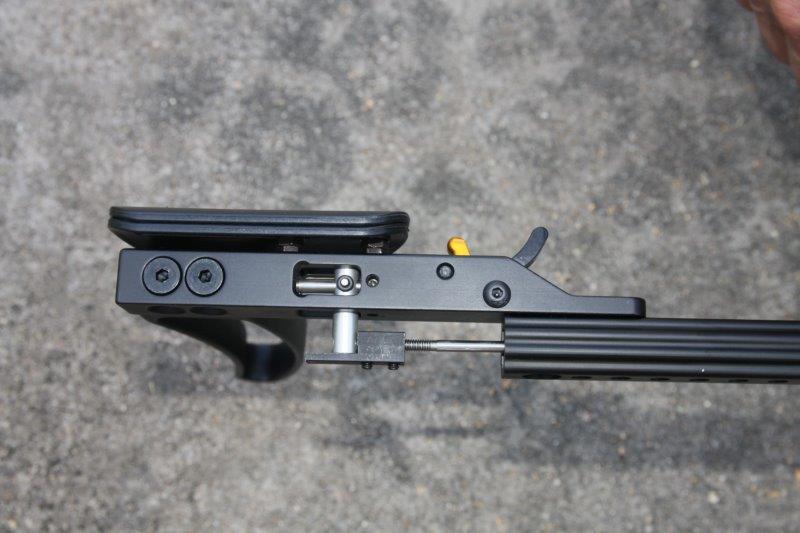

Rear Trigger Housing with Sear Pin, Linkage block, Linkage Stop and Linkage Rod. Also, Cheek Plate, Shoulder Stock, Anti Dry-Fire and Gold String Latch

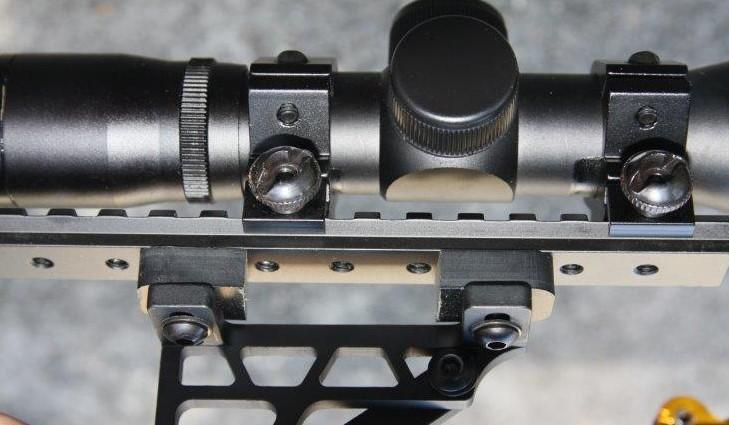

Scope Rail Adjustments for Left and Right Arrow POI

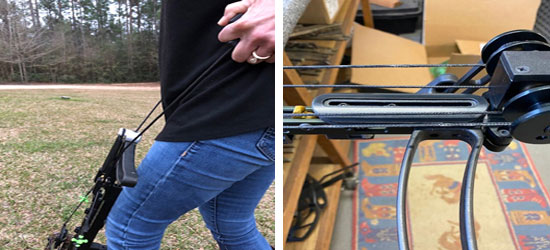

No more hard to draw or slow to crank crossbow.
Cranks and rope cocking devices are available, if needed.

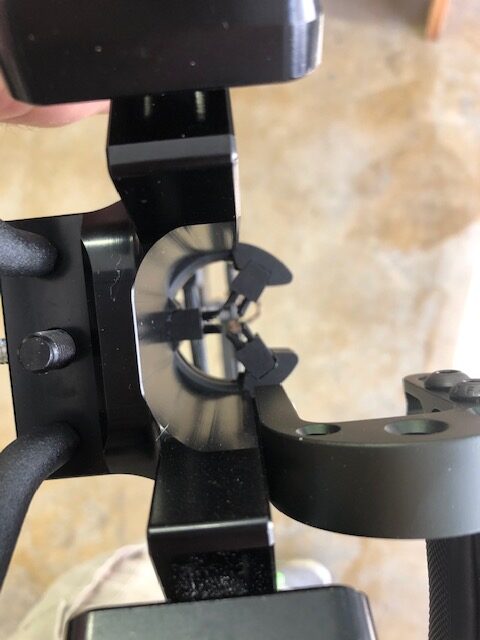

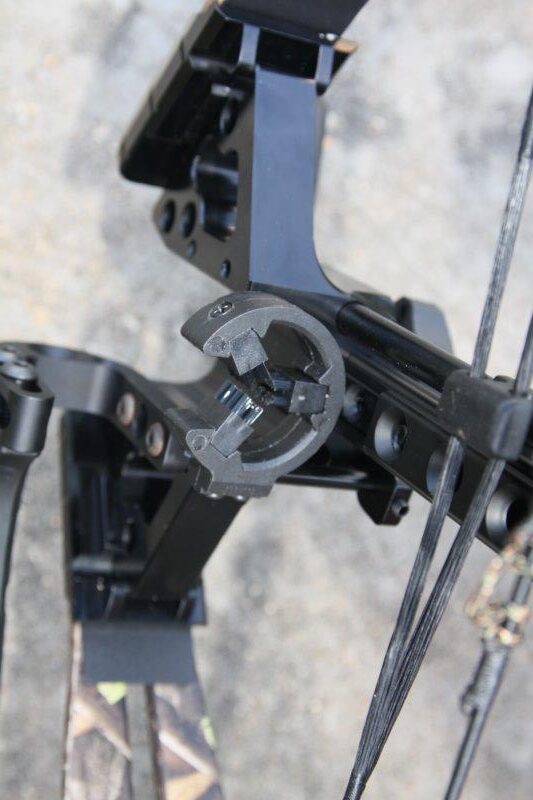

3 Bristled Arrow Rest
Arrow rest is centered flush with the borders.

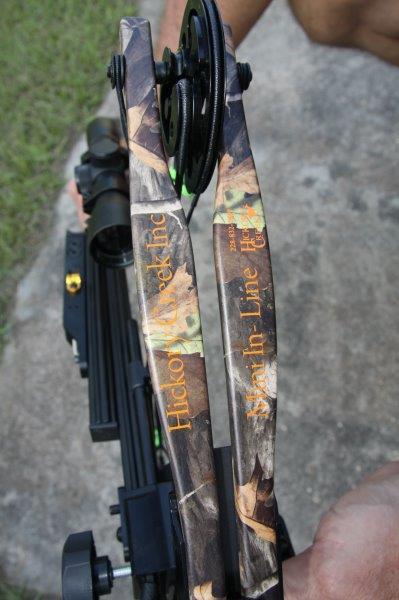

Quad Limb setup to eliminate excessive limb twist.
The Original Whisker Biscuit can be used.
String loops and arrow rest are used for precise, consistent drawing and noc placement. This also eliminates the need for an arrow rail.
This improves with accuracy, reducing noise and string ware.

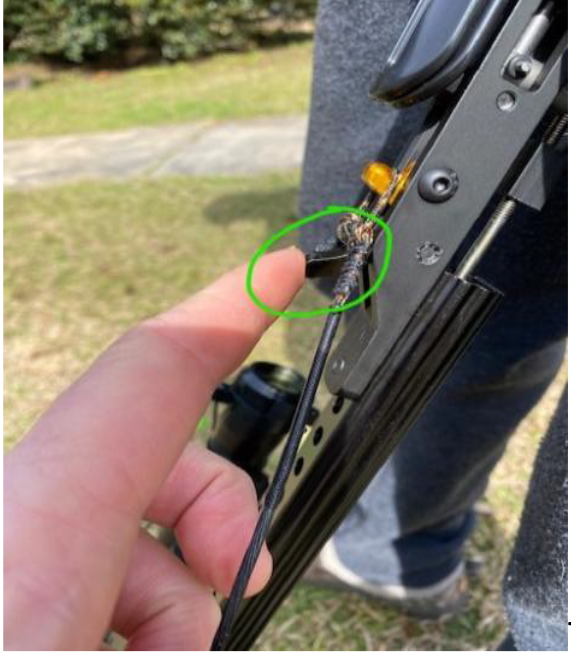

No more shooting into the ground or target or having to un-crank your string to let it down or disarm after a morning or afternoon of hunting. Simply lift the loop off the gold latch and let down.
No more dreading to take a long walks to your stand or a full day of stalking due to getting the crossbow tangled in the brush or being too heavy and bulky to carry. Easy to carry through the woods.
Comfortable to hold.
Fishing reels can also be attached
Pods can be used under the front of trigger grip for steady, rock solid shooting.
Also, one handed shooting.This is great for people with the use of only one arm.
No more having to select special or certain bolts. Standard compound bow arrow are used for the Vertical Crossbows,It is advised to use arrows with the proper stiffness.
Please Watch “Knowing the Basic of the In-Line Crossbow”
Before Shooting The bow To Prevent Any Issues
Warning
Failure to follow instructions can result in injury or worse.
Bow is not drawn during illustration purposes

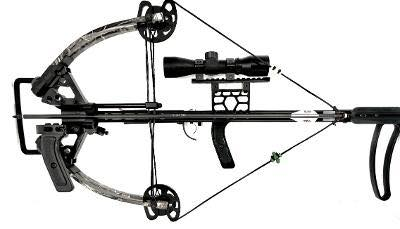

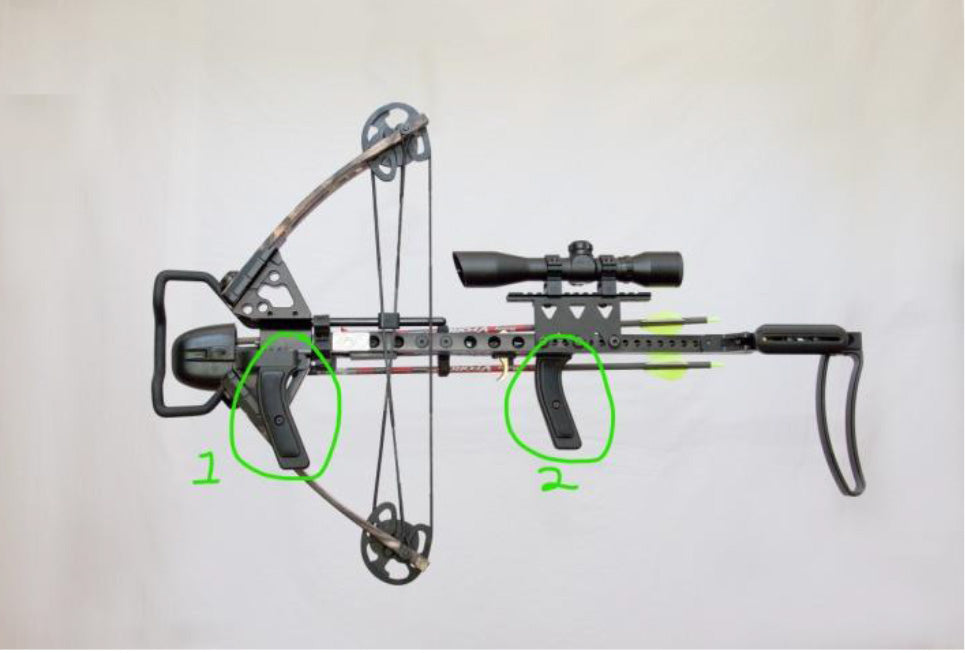

There are only two grips to hold the bow, 1) Front Grip that is attached to the bows riser, in the middle of the bow itself and 2) the Trigger Grip located in the center of the trigger tube assembly, just below the scope.
Your hand(s) should not be placed on this bow in any other location when shot.

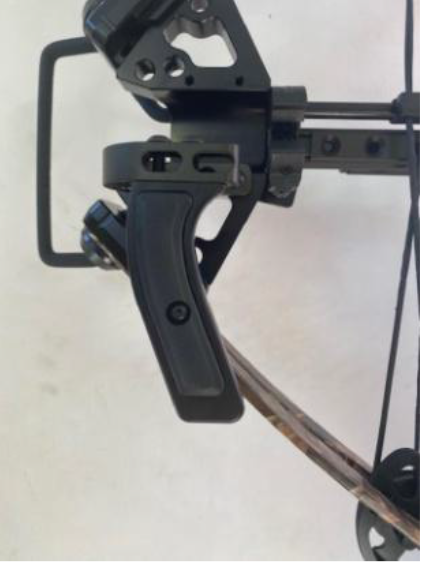

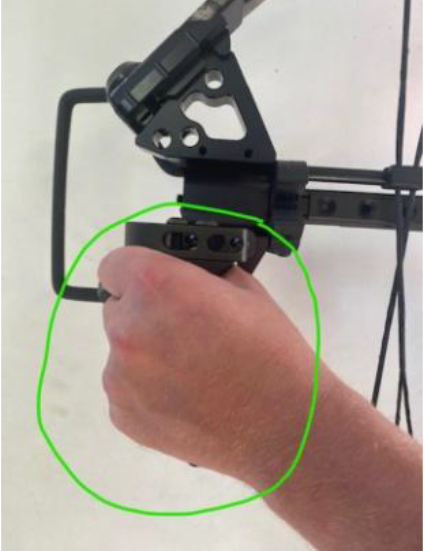

Front Grip

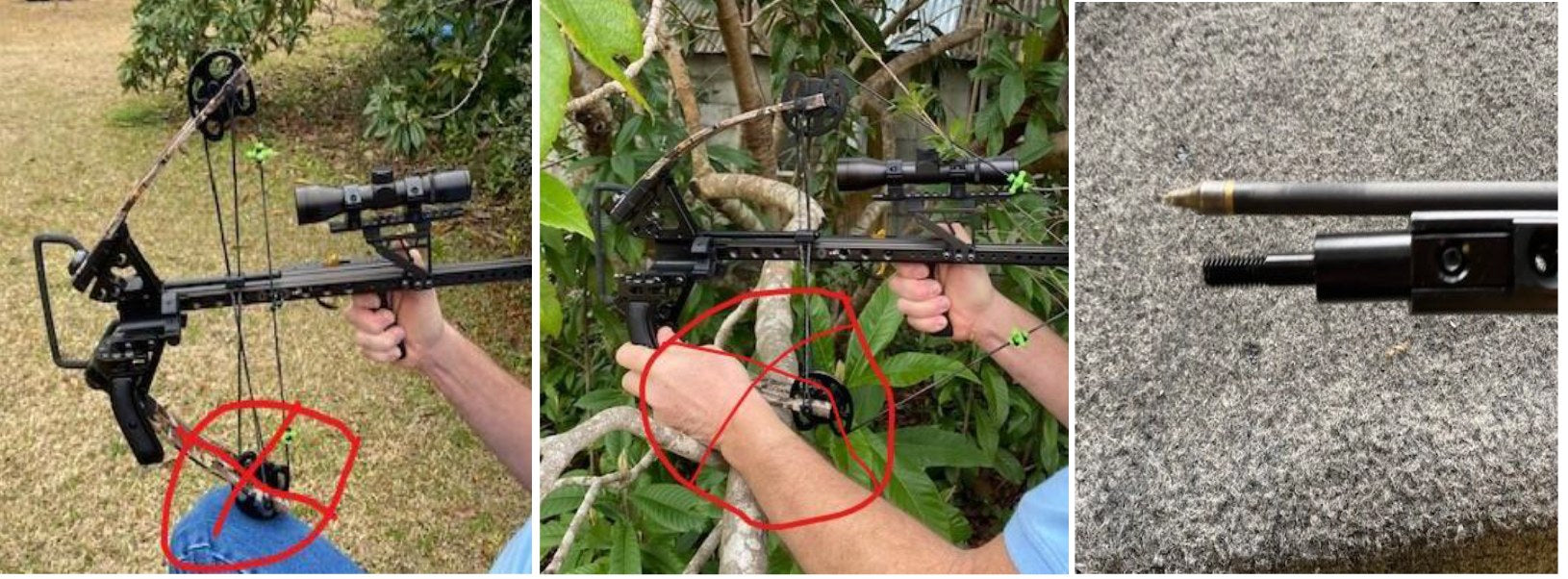

Correct way to hold the bow
Lower limb & cam

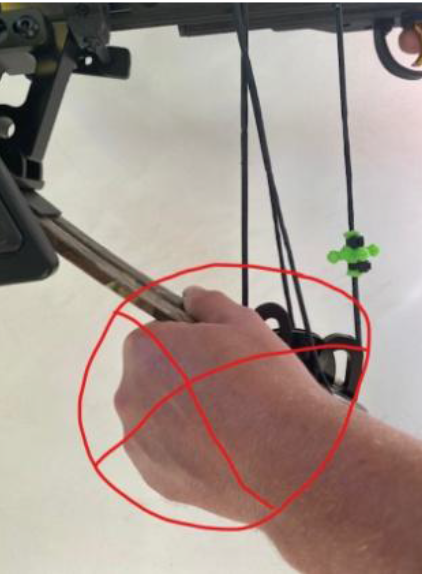

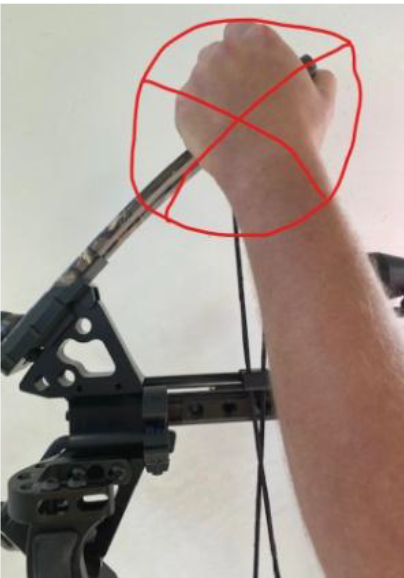

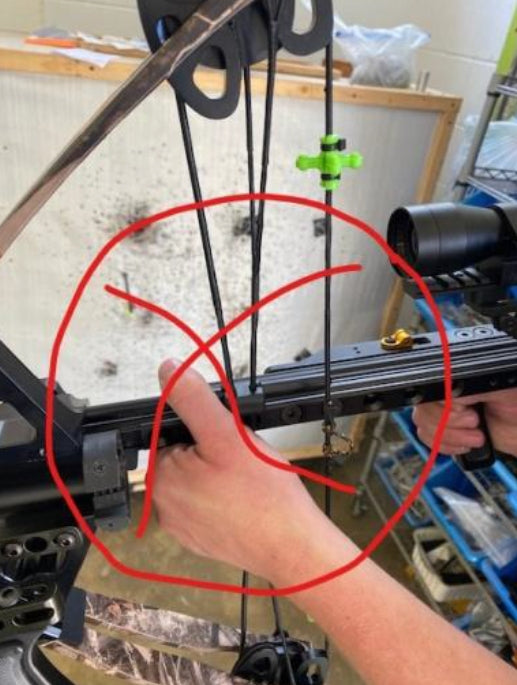

Do not EVER grab the cam or the limb when bow is drawn! If you do this, you can and will suffer injury.
Upper limb & cam
Warning
Failure to follow instructions can result in injury or worse.
Keep limbs/cams of bow away from objects when shooting. This can result in injury or damage.

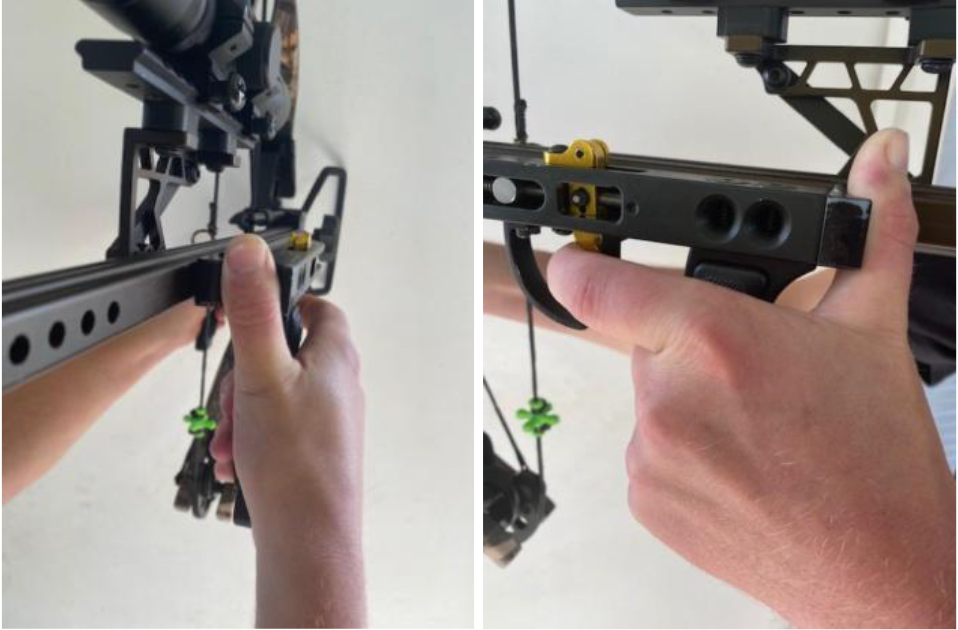

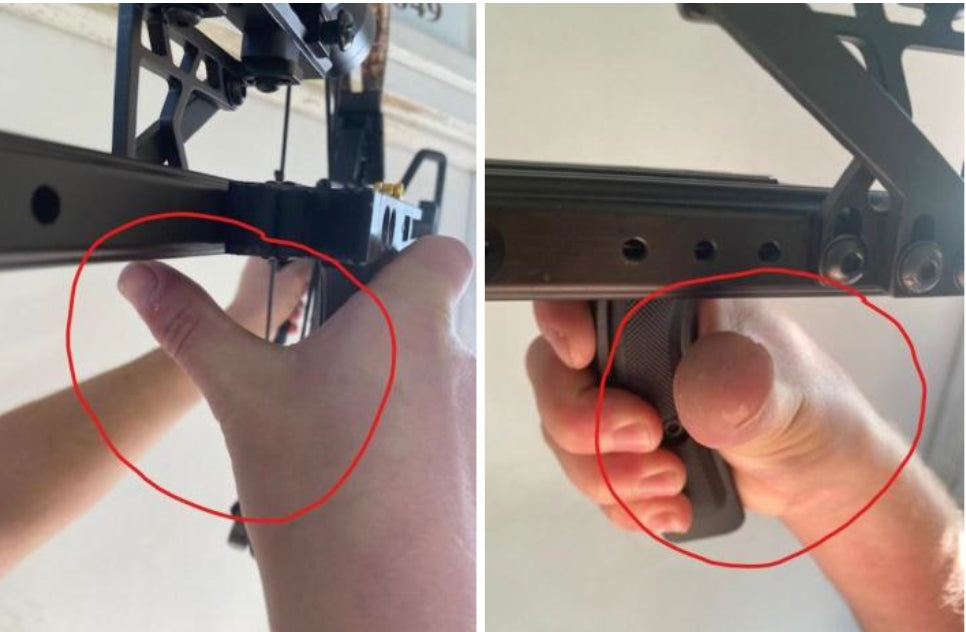

Grabbing the Trigger Grip: keep your thumb tucked in a normal natural manor
If you stick your thumb out in the path of the string it could hit your thumb causing injury
Warning
Failure to follow instructions can result in injury or worse.

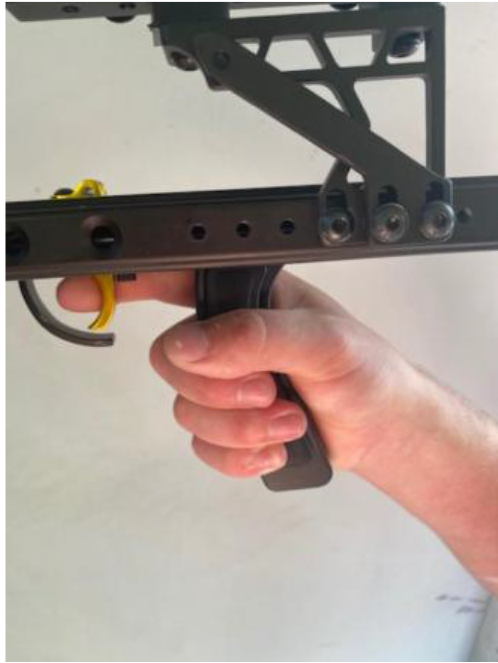

Another correct way to position your thumb
Now, all of the new bows come with a Thumb Positioning Rest.
Your hand(s) should not be placed on this bow in any other location when shot.
Do not put hands/finger into bow or in line of string or cables when bow is drawn.

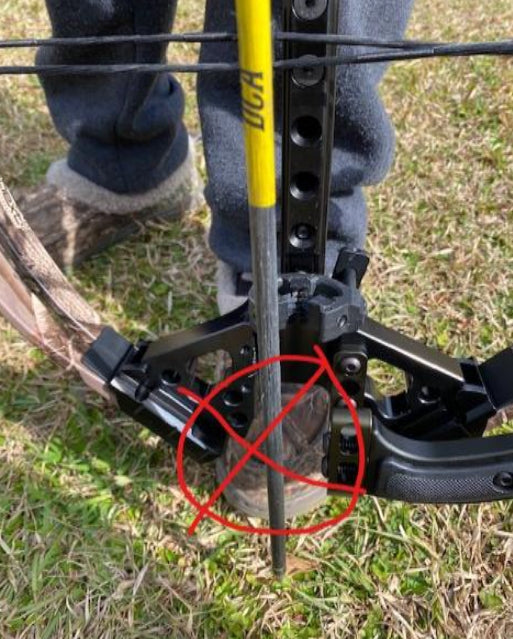

Do not leave foot in stirrup when loading an arrow in bow.

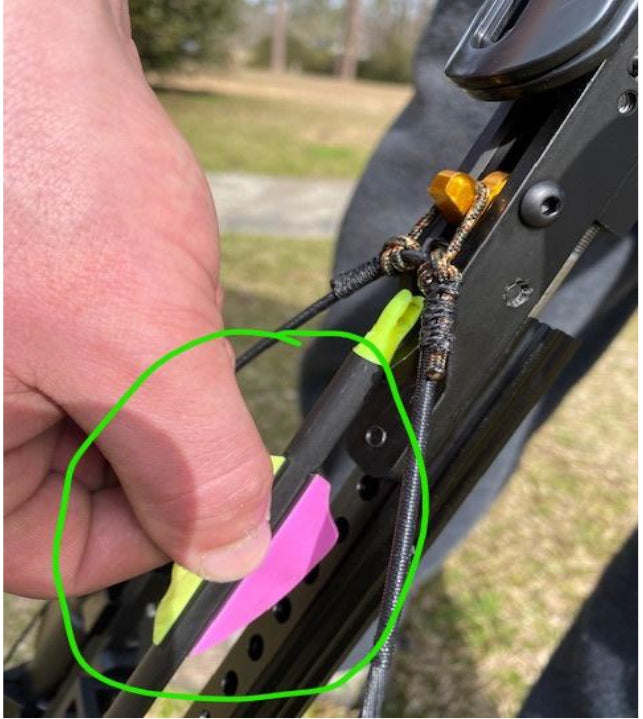

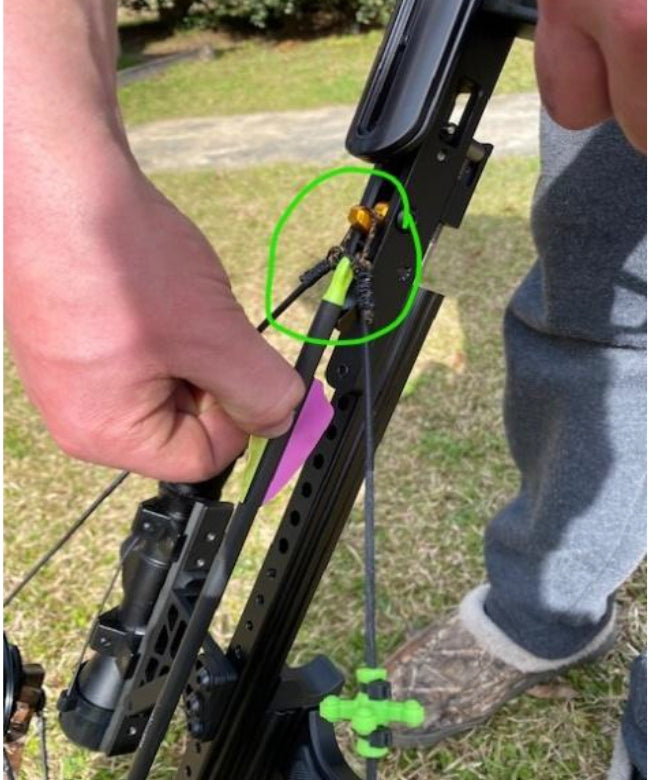

It is recommended to grab the top fletching of the arrow when loading arrow keeping hands out of the path of string.
The Anti Dry-Fire must be free, never force it down.
Be sure and place the arrow on the string and not under the string.
Warning:
Failure to follow instructions can result in injury or worse.
Some important things to know:
Never point the bow at you feet or in any direction , at anytime , that you do not or would not plan to shoot.
Never try to Dry-Fire the bow.
Never shoot at an unknown target, always know what you are shooting at.
Never climb with the bow cocked or loaded
Always shoot the recommended arrows.
Look at your string loop frequently for any unusual wear that may cause failure and replace if needed.
Always inspect strings and cables for extreme wear that may cause failure and replace if needed.
Children under the age of 18 should always be supervised when using this product.
Always call if you have any question or if unsure about anything concerning the bows or other items concerning the bow.
It is recommended to check all bolts for tightness.
It is important to make sure all “Accessories” Scopes, slings, lights……… are kept out of the path of sting/cables and arrow.
If you have an accidental misfire or discharge, please call (228) 832-2649, before attempting to shoot the bow again, the trigger will need to be adjusted. As with any crossbow, this can be very dangerous.
If used correctly and safely, this bow can provide years of enjoyable shooting.
